Features:
Single-phase backup diesel generator:Produces up to 12.5kVA / 10kW of power
Long-run 60L diesel tank:Saves you from having to keep topping up the generator
Fitted with an AVR alternator:Produces a smooth, clean energy output
ATS compatible:Able to automatically transfer power to the generator in the event of a power cut
Low noise generator:Produces 65 to 70db @ 7m
Peace of mind:1 year / 1,000 hours warranty* (terms apply)
Technical Specification:

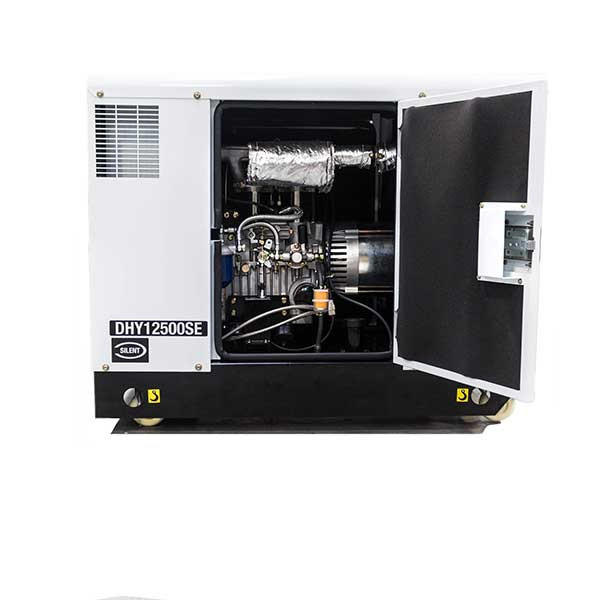

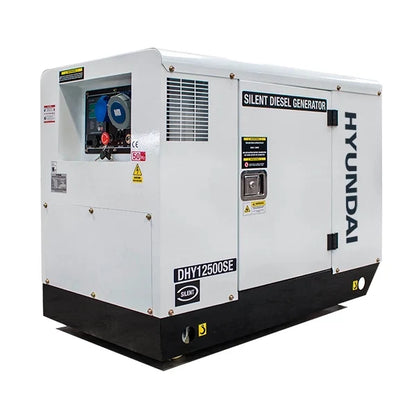

Model - DHY12500SE
Rated/Prime kVA* - 12.5
Rated/Prime kW - 10
Max/Standby kVA* - 13.75
Max/Standby kW - 11
Phase - Single
Voltage - 230
Connection Method(s) - Sockets - 1 x 32A, 1 x 63A
Rated Speed (RPM) - 3000
Frequency (Hz) - 50
Max/Continuous Current (Amps) - 47.83/43.48
Power Factor (Cosφ) - 1
Fuel/Power Source - Diesel
Fuel Tank (Litres) - 50
Runtime (Hours) @ 100% Load - 12
Noise Level @ 1m 75%81.5 load (dB) - 81.5
Noise Level @ 7m 75% load (dB) - 70

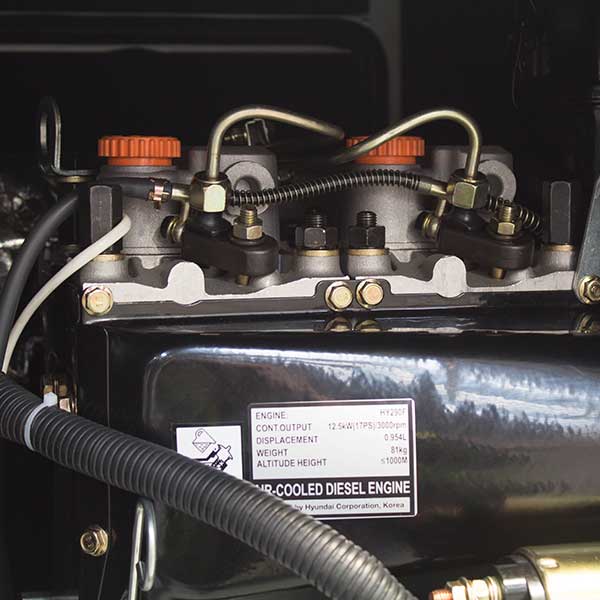

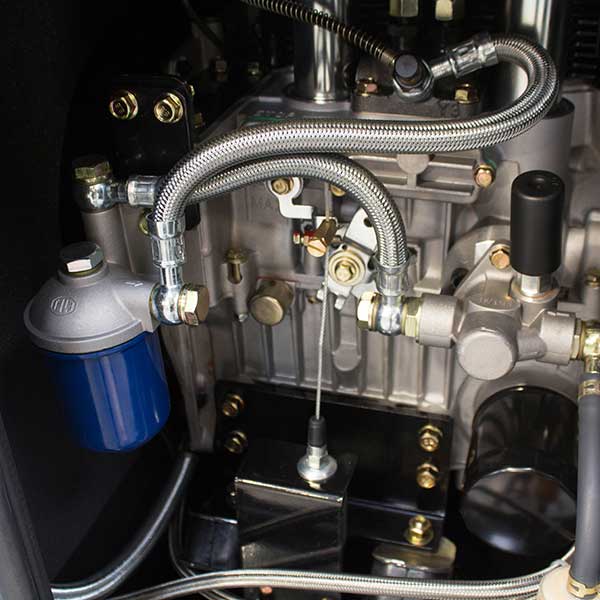

Diesel Engine Model - HY290F
Power Output (hp) - 20
Engine Displacement (CC) - 954
No. of Cylinders - 2
Recommended Oil Type - 15w40 / 10w40
Oil Capacity (Litres) - 3
Oil Filter Part No. - 3049050901800
Aspiration - Natural
Fuel Regulation/Governor System - Mechanical

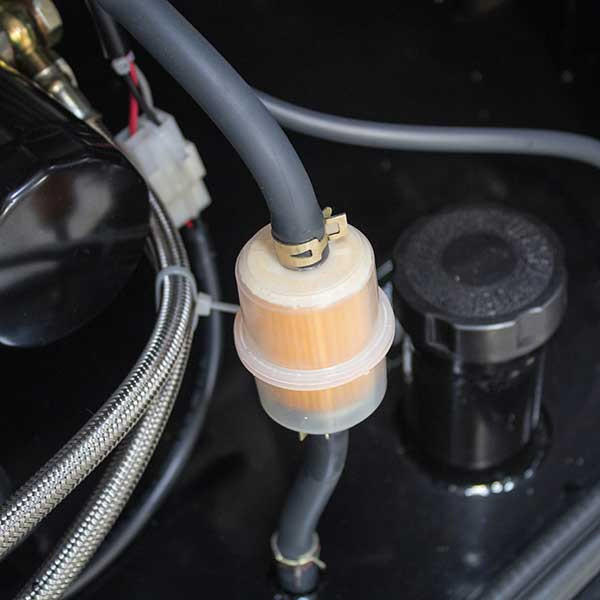

Fuel Filter Part No. - 3049051001000
Cooling Forced - Air-Cooled
Breakers - Yes
Alternator Type - Brushed
Voltage Regulation - AVR
Air Filter Part No. - 3049050700303
Net Weight (kg) - 270
Gross Weight (kg) - 290
Wheel Kit? - Yes
Dimensions L x W x H (mm) - 1175 x 695 x 1050
Battery (Ah) - 45
ATS / MTS Compatible - Yes

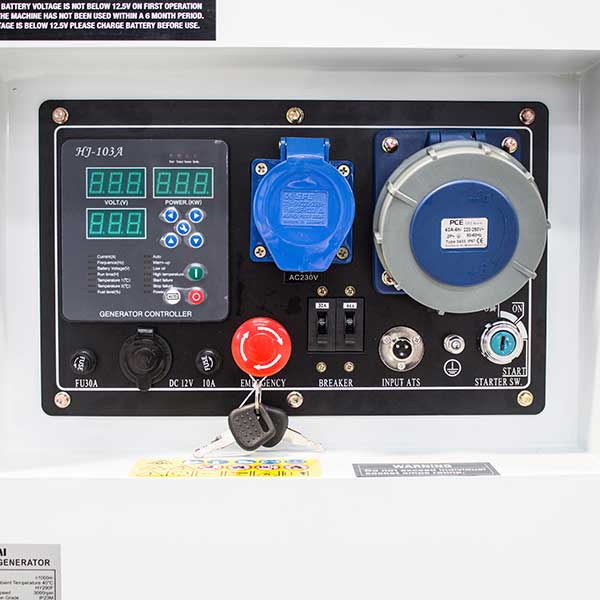

Control Panel - HJ-103A
Model EAN - 600231973526
Warranty - 1 Year / 1000 Hours* (Terms apply)
Assembly Required? - Yes - some assembly may be required
