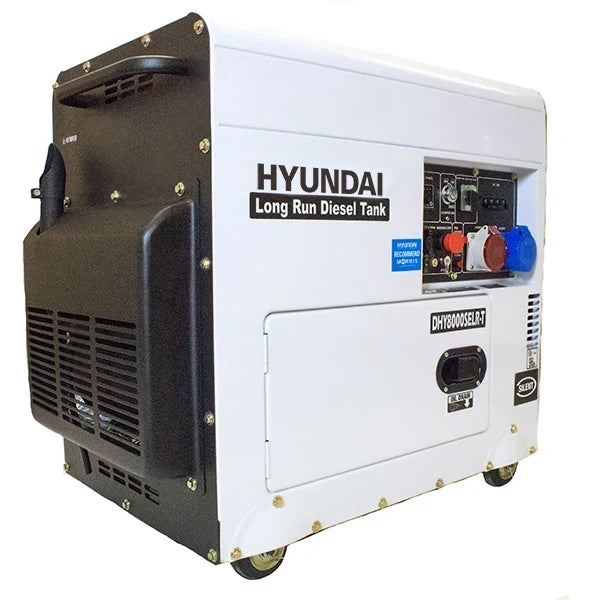

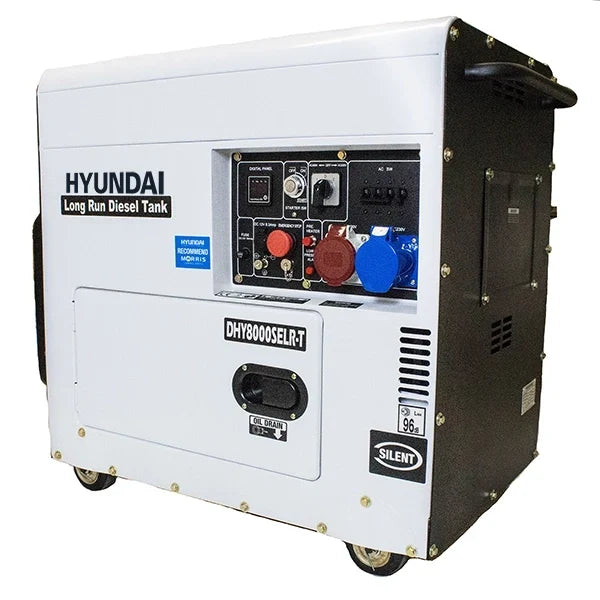

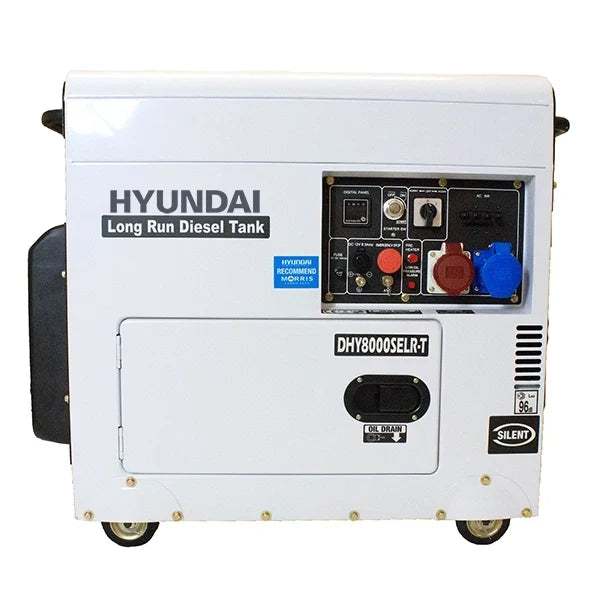

5.8kW/7.5kVA Multi-Phase Silenced Long Run Standby Diesel Generator
5.8kW/7.5kVA Multi-Phase Silenced Long Run Standby Diesel Generator
Regular price
£899.99 GBP
Regular price
Sale price
£899.99 GBP
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Can I return it if I'm not happy?
Can I return it if I'm not happy?
Yes — every order is covered by a 14-day return policy. If it's not the right fit for your space, email us at contact@calinza.shop or call +44 7455688475 and we'll sort it out, no hassle.
How is it delivered?
How is it delivered?
Your generator is delivered safely and securely straight to your door, fully packaged to arrive in perfect condition.
In The Box:
- Main Unit, 3 Spanners
- Screwdriver
- 12v DC Charging Cable
- 2 Manual Start Keys
- Fuel Filter
- 1 x 16A 3-phase plug
- 1 x 32A 230v plug
- Service Kit
Features:
- Equipped with a 25L fuel tank for an increased running time of up to 30 hours.
- Multi-phase - Single & Three Phase capabilities, ideal for garages and workshops.
- Powered by a 4-stroke, air-cooled diesel engine.
- Produces a maximum output of 5.8kW / 7.5kVA.
- Uses ATS capabilities to automatically start and shutdown during a power cut. ATS is sold separately.
- Housed in a silenced case with a sound rating of just 70dB @ 7 metres.
- Covered by a 1-year standard warranty.
- Full UK service and parts operation to maintain your generator for years to come.
Technical Specification:
- Model - DHY8000SELR-T
- Rated/Prime kVA* - 6.3
- Rated/Prime kW - 5
- Max/Standby kVA* - 7.25
- Max/Standby kW - 5.8
- Phase - Single / 3-Phase
- Voltage - 230 / 415
- Connection Method(s) - Sockets - 1 x 400V/16A 1 x 230V/32A
- Rated Speed (RPM) - 3000
- Frequency (Hz) - 50
- Max/Continuous Current (Amps) - 230v 25 / 21 - 400v 10.5 / 9
- Power Factor (Cosφ) - 1 (Single Phase) / 0.8 (3-Phase)
- Fuel/Power Source - Diesel
- Power Output (hp) @ 3000rpm - 9
- Engine Displacement (CC) - 456
- No. of Cylinders - 1
- Recommended Oil Type - 15w40 / 10w40
- Oil Capacity (Litres) - 1.65
- Oil Filter Part No. - D450-B9+D450-B8
- Aspiration - Natural
- Fuel Regulation/Governor System - Mechanical
- Fuel Consumption (100% Load) [Litres] - 1.71
- Fuel Filter Part No. - D450-R05
- Cooling Forced - Air-Cooled
- Alternator Model - D450/500-S01-2
- Breakers - 3P 9.5A 1P 21A
- Alternator Type - Brushed
- Voltage Regulation - AVR
- Air Filter Part No. - D450-I4
- Net Weight (kg) - 158
- Gross Weight (kg) - 167
- Wheel Kit? - Yes
- Dimensions L x W x H (mm) - 960 x 560 x 890
- Battery (Ah) - 12v 36a/h
- ATS / MTS Compatible - Yes

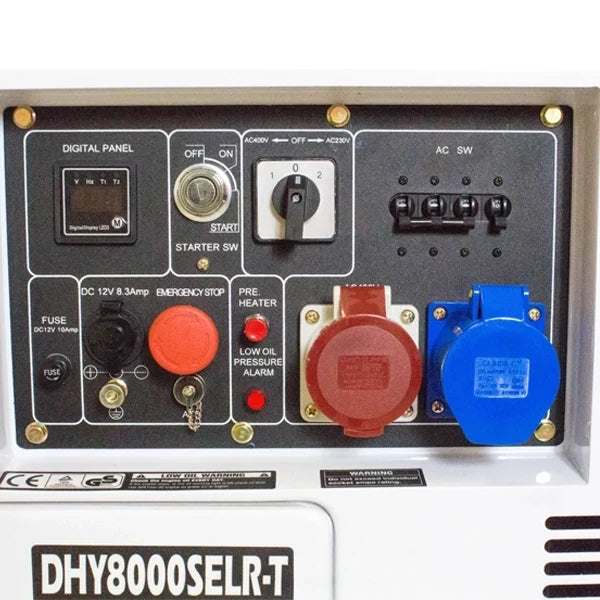

- Control Panel - LED3 DISPLAY
- Model EAN - 600231973434
- Warranty - 1 Year / 1000 Hours* (Terms apply)
