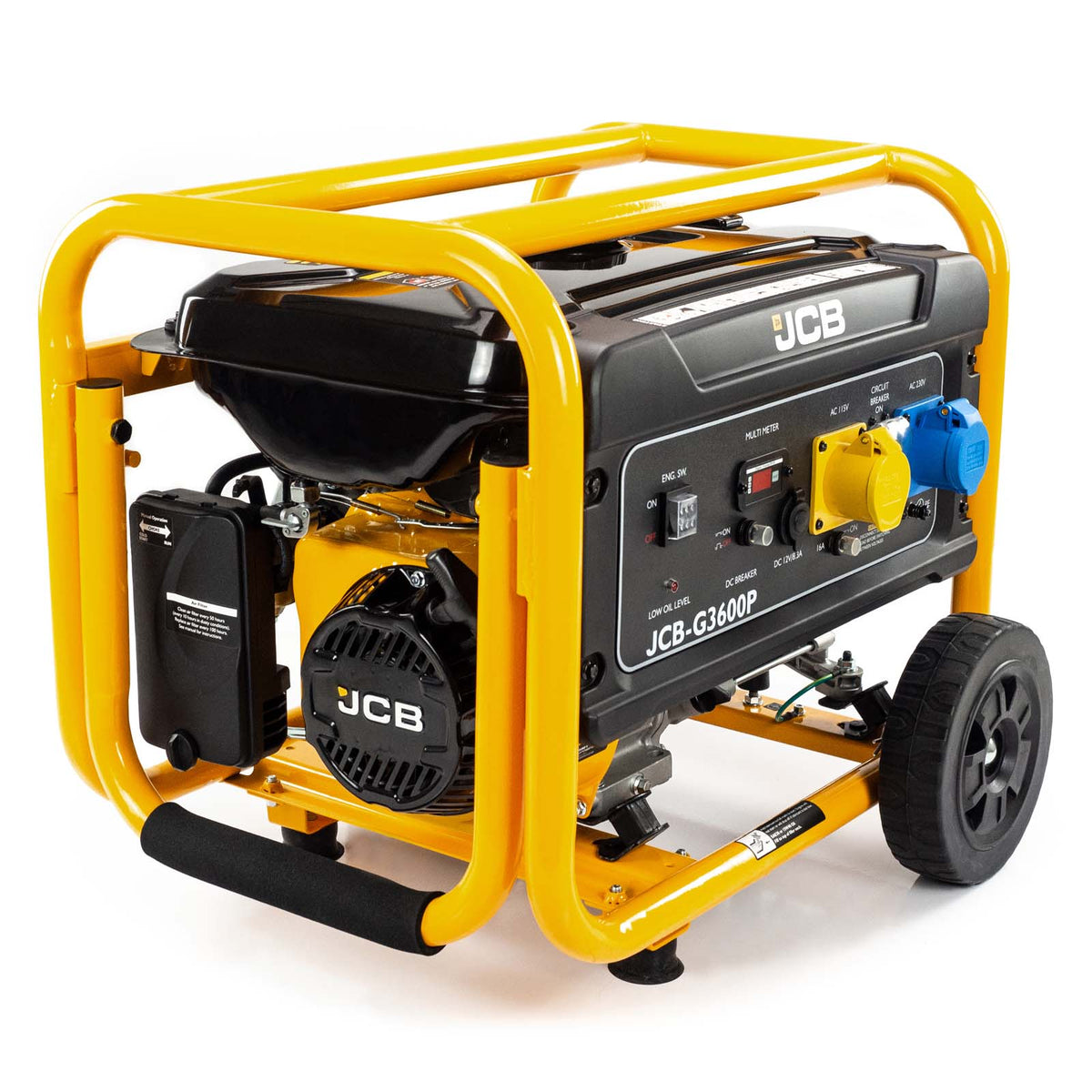

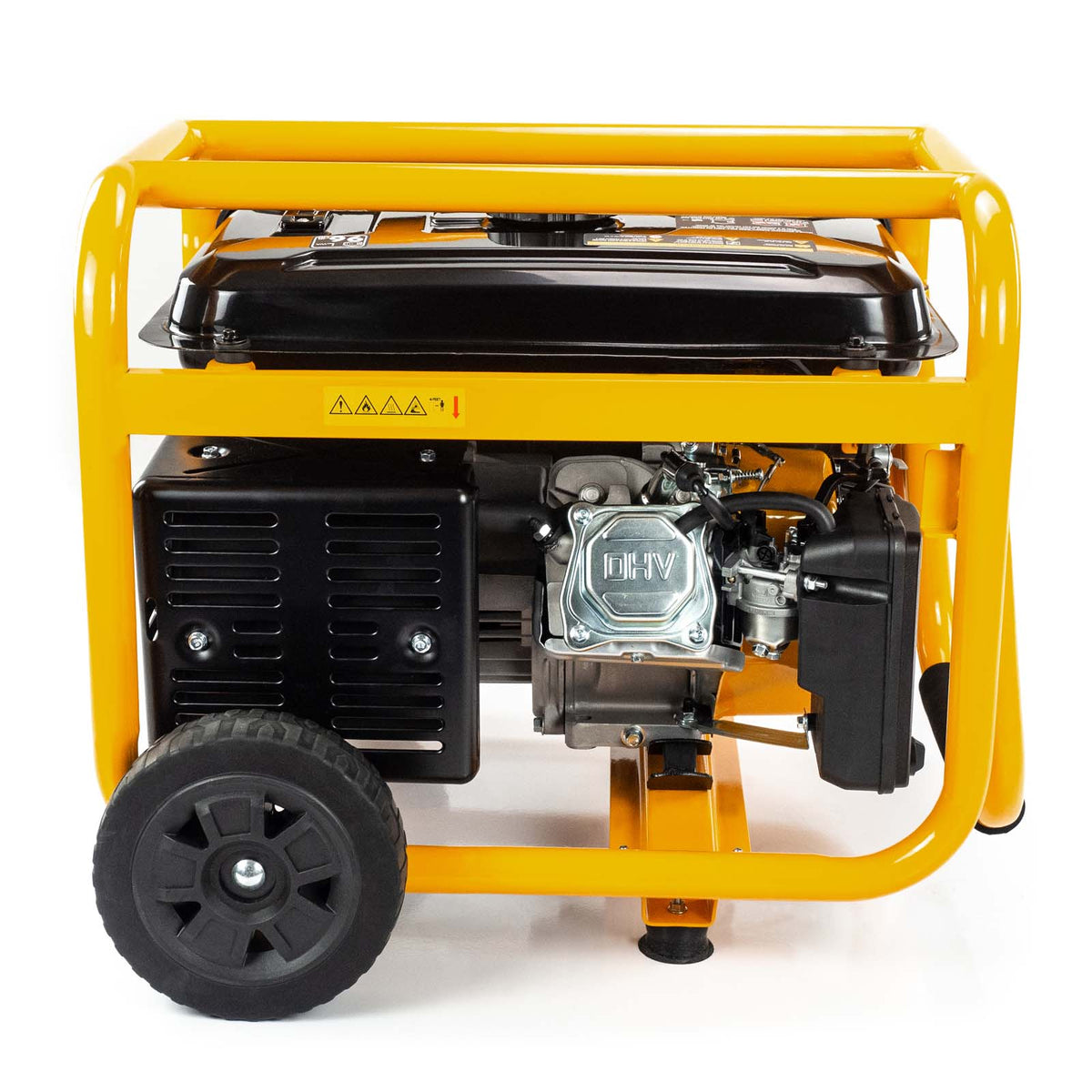

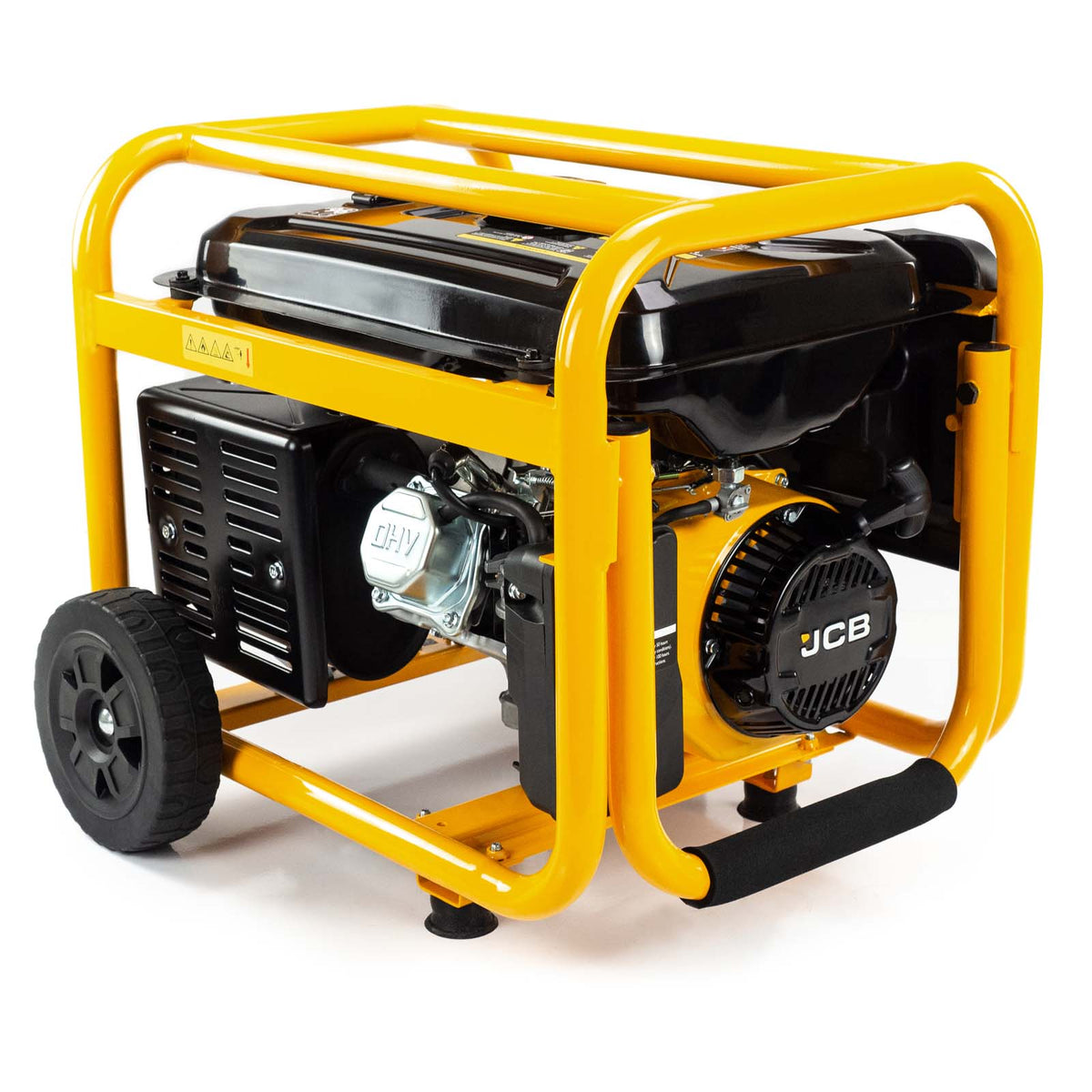

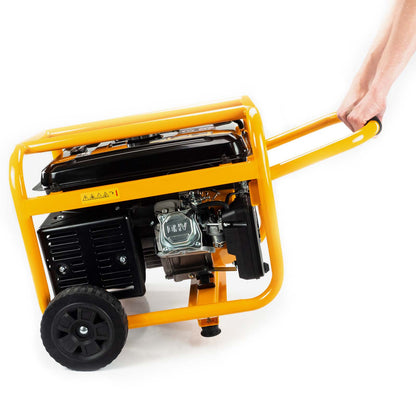

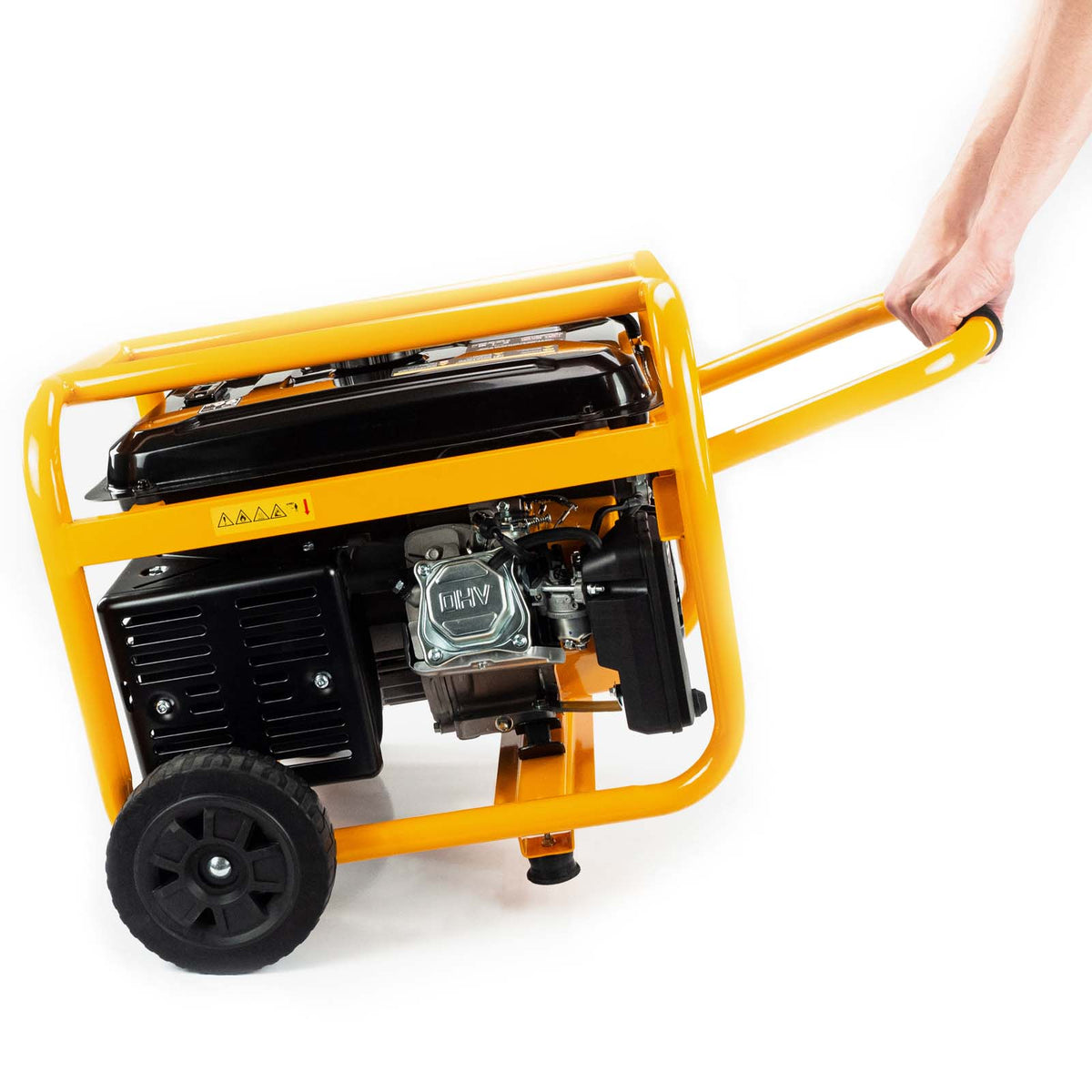

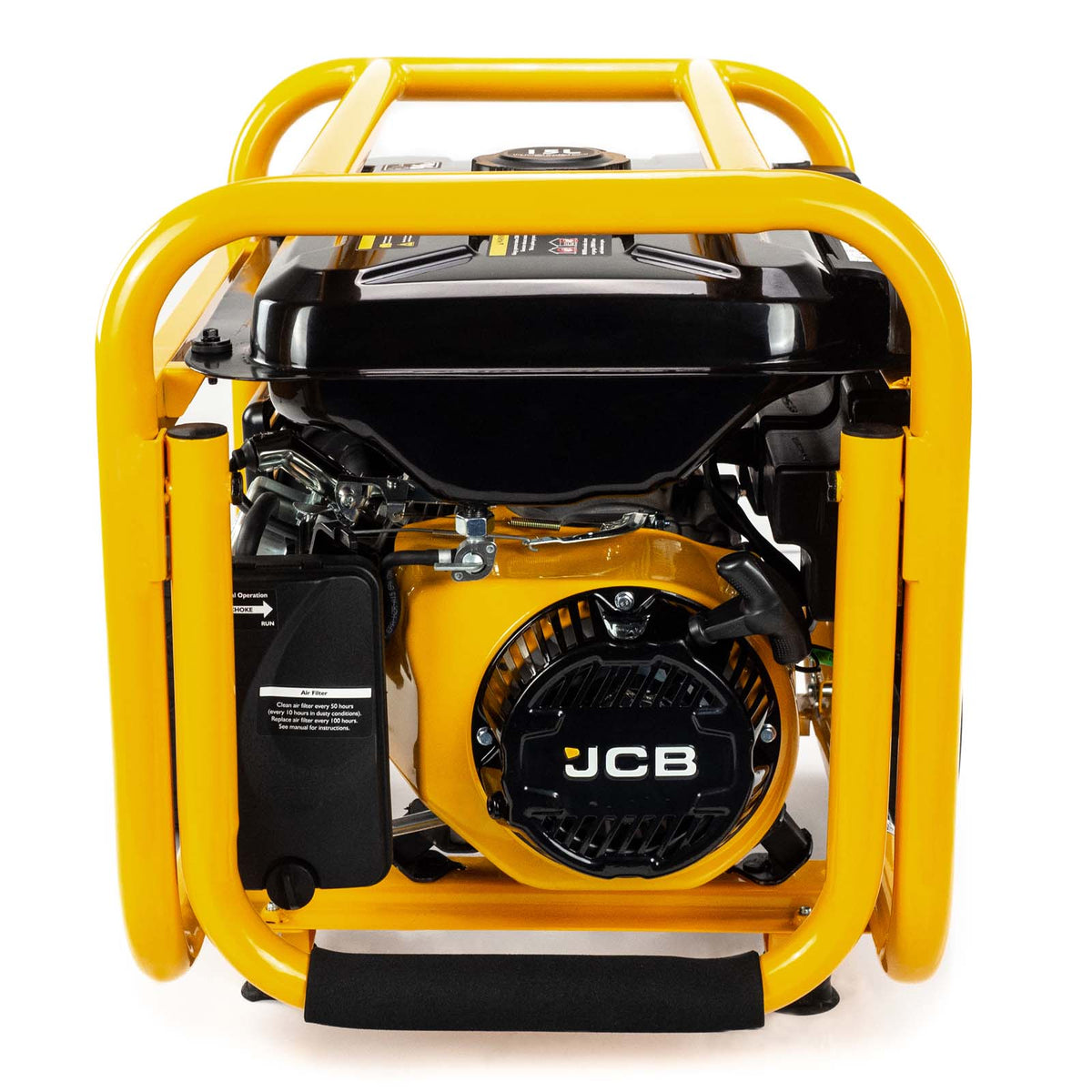

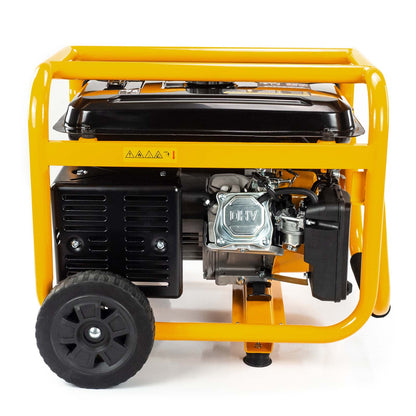

3.6kW Petrol Site Generator 115V/230V 224cc G3600P

Key Features:

• Powered by a 224cc 7.5hp petrol engine.
• Max output of 3.6kW / 4.5kVA*, continuous output of 3.3kW / 4kVA
• Automatic Voltage Regulator (AVR), which ensures a smooth and stable power output.
• Built-in overload protection prevents damage to the alternator during operation.
• Mounted on puncture-proof tyres and encased in a robust 32mm tubular steel full frame design.
• Equipped with a 230v / 16A (Blue) socket and a 115v / 16A (Yellow) socket, as well as a 12v DC 8.3A auxiliary power outlet.
• Heavy-duty recoil pull start
• Powered by a 4-stroke petrol engine, the generator requires no fuel-oil mixing.
• Run time of over 13 hours at 50% load with its 15-litre fuel tank. Net Weight 50kg
• Backed by a comprehensive 3-year warranty (1 year Commercial)

Specifications:

• Model: G3600P
• Start Method: Recoil
• Maximum Output kVA: 4.5
• Maximum Output (kW): 3.6
• Continuous Output (kW): 3.2
• Run Time @ 50% load (hours): 13
• Fuel Consumption @ 100% load (L/Hr): 2
• Fuel Consumption @ 50% load (L/Hr): 1.15
• Alternator Type: AVR
• Phase: Single Phase
• Voltage: 115V / 230V
• Connection Method(s): 230V / 16A, 115V / 16A
• Rated Speed (RPM): 3000
• Frequency (Hz): 50
• Max/Continuous Current (Amps): 15.6 / 13.9
• Engine Model: EG225P
• Engine Type: Petrol single cylinder
• Engine Size (cc): 224
• Engine Power (hp): 7.5
• Fuel: Petrol
• Fuel Capacity (L): 15
• Engine Oil Type: 10w-30 / SAE 15w40
• Engine Oil Capacity (ml): 600
• Low Oil Level Shutdown: Yes
• Features: Overload Protection
• Casing: 32mm Thick Open Frame
• Frame Diameter (mm): 33
• Noise Level db (A) @ 7m: 70
• Noise Level db (A): 97
• Wheel Kit?: 54
• Gross Weight (kg): 51
• Net Weight (kg): 50
• Fully Assembled Dimensions (H x W x L) (mm): 540 x 580 x 610
• Package Dimensions (H x W x L) (mm): 515 x 520 x 685
• Fuel/Power Source: Petrol
• Product Type: Petrol Generator
• Home Use Warranty (years): 3
• Model EAN: 5059608313055
